Trying the Zsa-Voyager With Ergo-L

{ ... }:
{
  services.xserver.inputClassSections = [
    ''
      Identifier "voyager-ergol"
      MatchIsKeyboard "on"
      MatchUSBID "3297:1977"
      Option "XkbLayout" "fr"
      Option "XkbVariant" "ergol"
    ''
  ];
}

# Cheapest first: a character reachable with no modifier must not be listed
# under one that needs shift or altgr, wherever it turns up in the table.
LEVELS = ("", "shift", "right alt (in oryx)")

recipes = {}
for column, modifier in enumerate(LEVELS, start=1):
    for row in glyphs:
        char = str(row[column])
        if char and char not in recipes:
            recipes[char] = (str(row[0]), modifier)

print("| to type | pick in oryx | holding |")
print("|---+---+---|")
for char, (keycode, modifier) in sorted(recipes.items()):
    print("| %s | %s | %s |" % (char, keycode, modifier))

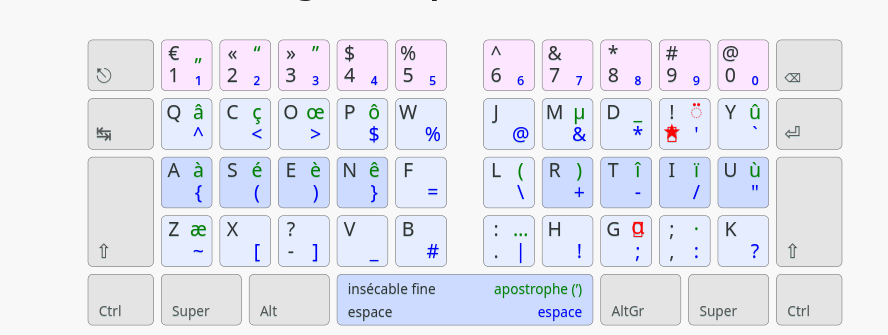

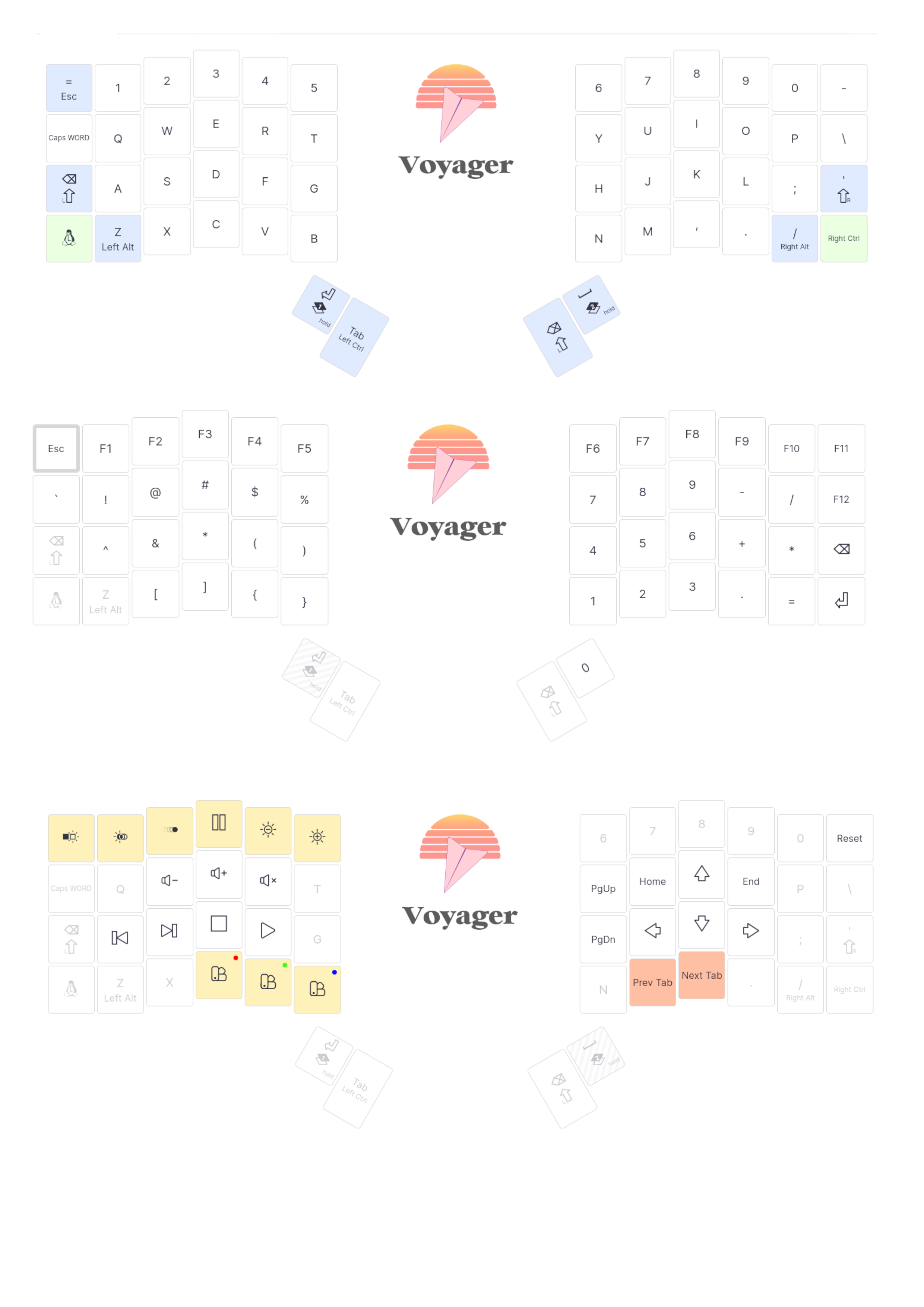

[[https://ipfs.konubinix.eu/p/bafkreigmgxdszoubm3yf5xk7huz5afngl5mmtbvqudull5eswut4slp2mm?filename=zsa_voyager_y6lnb_azrwdb_konubinix.bin][zsa_voyager_Y6Lnb_AzRwdB_konubinix.bin]]

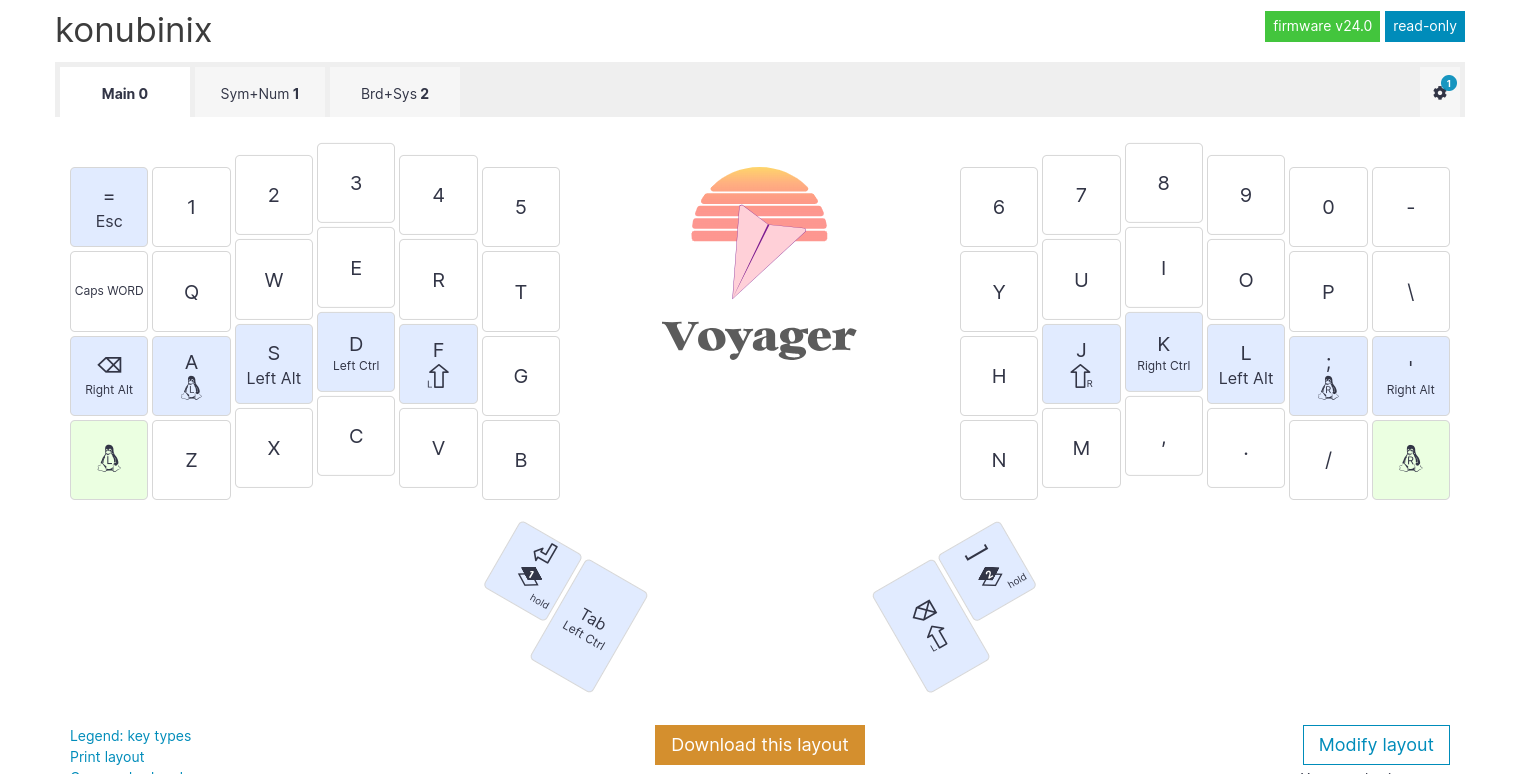

[[https://ipfs.konubinix.eu/p/bafkreigqk7235mdc4zhue2cx3puixn6np44qcbta5gy4pnu6splaabkjde?filename=zsa_voyager_y6lnb_azrwdb_konubinix_source.zip][zsa_voyager_Y6Lnb_AzRwdB_konubinix_source.zip]]

cd ~/.cache/voyager-ergol
rm -rf source && unzip -q "${SOURCE%%\?*}" -d source
cd source/zsa_voyager_konubinix_source

grep -q KEY_OVERRIDE_ENABLE rules.mk ||
    echo 'KEY_OVERRIDE_ENABLE = yes' >> rules.mk

grep -q key_overrides keymap.c || cat >> keymap.c <<'EOF'

const key_override_t delete_l1_override =
    ko_make_basic(MOD_MASK_SHIFT, KC_BSPC, KC_DEL);

const key_override_t delete_thumb_override =
    ko_make_basic(MOD_MASK_SHIFT, MT(MOD_LSFT, KC_BSPC), KC_DEL);

const key_override_t *key_overrides[] = {
    &delete_l1_override,
    &delete_thumb_override,
    NULL
};
EOF

grep -c ko_make_basic keymap.c

2

{
  inputs = {
    nixpkgs.url = "nixpkgs";
    qmk_firmware = {
      url = "git+https://github.com/zsa/qmk_firmware?submodules=1&shallow=1";
      flake = false;
    };
  };

  outputs =
    { nixpkgs, qmk_firmware, ... }:
    let
      pkgs = nixpkgs.legacyPackages.x86_64-linux;
    in
    {
      packages.x86_64-linux.default = pkgs.stdenv.mkDerivation {
        name = "zsa_voyager_konubinix.bin";
        src = ./source/zsa_voyager_konubinix_source;

        # qmk propagates gcc-arm-embedded, gnumake and dfu-util.
        nativeBuildInputs = [ pkgs.qmk ];

        # qmk builds inside its own tree, the store copy is read only.
        buildPhase = ''
          export HOME=$TMPDIR QMK_HOME=$TMPDIR/qmk
          cp -r ${qmk_firmware} $QMK_HOME
          chmod -R u+w $QMK_HOME
          cp -r . $QMK_HOME/keyboards/zsa/voyager/keymaps/konubinix
          # version.h is stamped from git describe, the store copy has no .git
          qmk compile -e SKIP_VERSION=yes -kb zsa/voyager -km konubinix
        '';

        installPhase = "cp $QMK_HOME/*.bin $out";
      };
    };
}

nix build ~/.cache/voyager-ergol --print-out-paths \
    --out-link ~/.cache/voyager-ergol/built.bin

lsusb | grep --ignore-case zsa

Bus 001 Device 012: ID 3297:0791 ZSA Technology Labs Voyager Bootloader

{ ... }:
{
  hardware.keyboard.zsa.enable = true;
}

dfu-util --device 3297:0791 --alt 0 \
    --dfuse-address 0x08002000:leave \
    --download ~/.cache/voyager-ergol/built.bin 2>&1

dfu-util 0.11

Copyright 2005-2009 Weston Schmidt, Harald Welte and OpenMoko Inc.
Copyright 2010-2021 Tormod Volden and Stefan Schmidt
This program is Free Software and has ABSOLUTELY NO WARRANTY
Please report bugs to http://sourceforge.net/p/dfu-util/tickets/

Opening DFU capable USB device...
Device ID 3297:0791
Device DFU version 011a
Claiming USB DFU Interface...
Setting Alternate Interface #0 ...
Determining device status...
DFU state(2) = dfuIDLE, status(0) = No error condition is present
DFU mode device DFU version 011a
Device returned transfer size 2048
DfuSe interface name: "Internal Flash   "
Downloading element to address = 0x08002000, size = 54292

Erase   	[                         ]   0%            0 bytes
Erase   	[=                        ]   7%         4096 bytes
Erase   	[==                       ]  11%         6144 bytes
Erase   	[===                      ]  15%         8192 bytes
Erase   	[====                     ]  18%        10240 bytes
Erase   	[=====                    ]  22%        12288 bytes
Erase   	[======                   ]  26%        14336 bytes
Erase   	[=======                  ]  30%        16384 bytes
Erase   	[========                 ]  33%        18432 bytes
Erase   	[=========                ]  37%        20480 bytes
Erase   	[==========               ]  41%        22528 bytes
Erase   	[===========              ]  45%        24576 bytes
Erase   	[============             ]  49%        26624 bytes
Erase   	[=============            ]  52%        28672 bytes
Erase   	[==============           ]  56%        30720 bytes
Erase   	[===============          ]  60%        32768 bytes
Erase   	[================         ]  64%        34816 bytes
Erase   	[=================        ]  71%        38912 bytes
Erase   	[==================       ]  75%        40960 bytes
Erase   	[===================      ]  79%        43008 bytes
Erase   	[====================     ]  82%        45056 bytes
Erase   	[=====================    ]  86%        47104 bytes
Erase   	[======================   ]  90%        49152 bytes
Erase   	[=======================  ]  94%        51200 bytes
Erase   	[======================== ]  98%        53248 bytes
Erase   	[=========================] 100%        54292 bytes
Erase    done.

Download	[                         ]   0%            0 bytes
Download	[=                        ]   7%         4096 bytes
Download	[==                       ]  11%         6144 bytes
Download	[===                      ]  15%         8192 bytes
Download	[====                     ]  18%        10240 bytes
Download	[=====                    ]  22%        12288 bytes
Download	[======                   ]  26%        14336 bytes
Download	[=======                  ]  30%        16384 bytes
Download	[========                 ]  33%        18432 bytes
Download	[=========                ]  37%        20480 bytes
Download	[==========               ]  41%        22528 bytes
Download	[===========              ]  45%        24576 bytes
Download	[============             ]  49%        26624 bytes
Download	[=============            ]  52%        28672 bytes
Download	[==============           ]  56%        30720 bytes
Download	[===============          ]  60%        32768 bytes
Download	[================         ]  64%        34816 bytes
Download	[=================        ]  71%        38912 bytes
Download	[==================       ]  75%        40960 bytes
Download	[===================      ]  79%        43008 bytes
Download	[====================     ]  82%        45056 bytes
Download	[=====================    ]  86%        47104 bytes
Download	[======================   ]  90%        49152 bytes
Download	[=======================  ]  94%        51200 bytes
Download	[======================== ]  98%        53248 bytes
Download	[=========================] 100%        54292 bytes
Download done.
File downloaded successfully
Submitting leave request...
Transitioning to dfuMANIFEST state

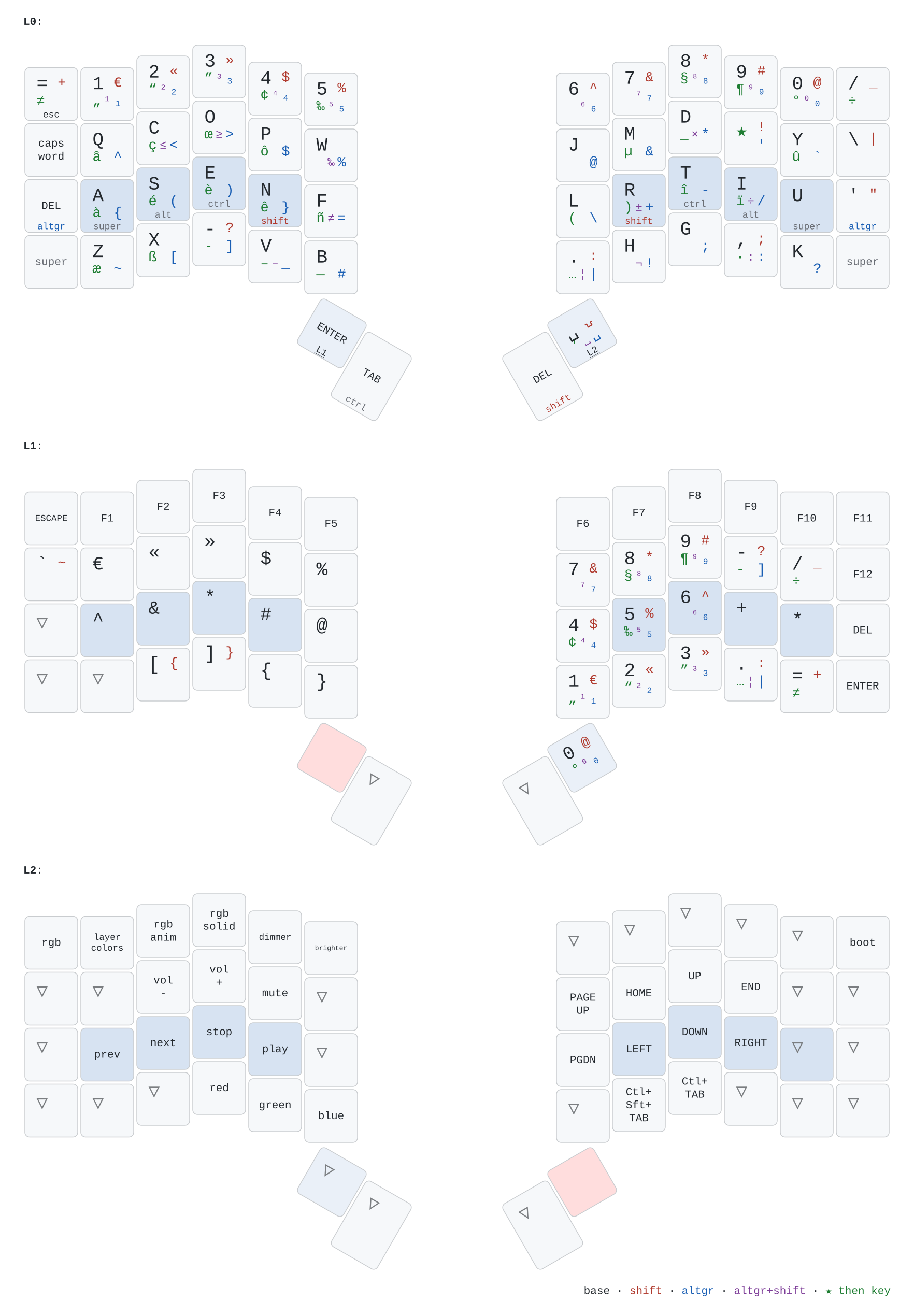

from keymap_drawer.config import ParseConfig
from xkbcommon import xkb

# The alphanumeric keys. Above them the keypad repeats the same glyphs.
SPACE = 65
MAIN_BLOCK = [*range(9, 62), SPACE]

# The spaces ergol puts on that key are invisible, so name them.
VISIBLE = {" ": "␣", " ": "⍽", " ": "⎵"}

# ergol reaches its accented letters through the ★ dead key, which is level 5.
ONE_DEAD_KEY = 4

# Level 4: the maths and the superscripts, plus the non-breaking space.
ALTGR_SHIFT = 3

context = xkb.Context()


def glyphs(layout, variant, held):
    """What each key of the main block produces, with `held` down."""
    keymap = context.keymap_new_from_names(layout=layout, variant=variant)
    state = keymap.state_new()
    if held:
        state.update_key(keymap.key_by_name(held), xkb.XKB_KEY_DOWN)
    return {code: state.key_get_string(code) for code in MAIN_BLOCK}


def level(layout, variant, index):
    """What each key produces at that level, for levels no modifier reaches."""
    keymap = context.keymap_new_from_names(layout=layout, variant=variant)
    out = {}
    for code in MAIN_BLOCK:
        syms = []
        if keymap.num_levels_for_key(code, 0) > index:
            syms = keymap.key_get_syms_by_level(code, 0, index)
        out[code] = (xkb.keysym_to_string(syms[0]) or "") if syms else ""
    return out


def ergol_levels():
    """Every key of ergol, as (base, shifted, altgr, dead key, altgr+shift)."""
    base = glyphs("fr", "ergol", None)
    shifted = glyphs("fr", "ergol", "LFSH")
    altgr = glyphs("fr", "ergol", "RALT")
    dead = level("fr", "ergol", ONE_DEAD_KEY)
    hard = level("fr", "ergol", ALTGR_SHIFT)
    return {
        code: (base[code] or "★", shifted[code], altgr[code], dead[code], hard[code])
        for code in MAIN_BLOCK
    }


def keycode_map():
    """keymap-drawer's qmk_keycode_map, with the ergol levels of that same key."""
    plain = glyphs("us", None, None)
    caps = glyphs("us", None, "LFSH")
    ergol = ergol_levels()

    # A keycode that already means "shift + something" lands on one glyph only.
    unshifted = {plain[code]: ergol[code] for code in MAIN_BLOCK if plain[code]}
    shifted = {
        caps[code]: (ergol[code][1], "", "", "", "")
        for code in MAIN_BLOCK
        if caps[code]
    }

    # Letters are absent from that map: it falls back to the keycode name.
    out = {glyph.upper(): levels for glyph, levels in unshifted.items() if glyph.isalnum()}

    for keycode, glyph in ParseConfig().qmk_keycode_map.items():
        out[keycode] = unshifted.get(glyph) or shifted.get(glyph) or (glyph, "", "", "", "")

    out["SPACE"] = ergol[SPACE]
    return out


for keycode, (base, shifted, altgr, dead, hard) in keycode_map().items():
    # Showing "q Q" on every letter is noise.
    shifted = "" if shifted == base.upper() else shifted
    # Keycaps are printed in majuscule.
    base = base.upper() if base.isalpha() else base
    # A cell cannot hold a bare pipe.
    cells = [
        VISIBLE.get(cell, cell).replace("|", r"\vert")
        for cell in (base, shifted, altgr, dead, hard)
    ]
    print("%s|%s|%s|%s|%s|%s" % (keycode, *cells))

nix shell --impure --expr 'with import <nixpkgs> {}; python3.withPackages (ps: [ ps.xkbcommon ps.keymap-drawer ])' --command python3 <<'EOF'
<<ergol_glyphs_py>>
EOF

import json
import os
import re
import zipfile

KEYMAP = "zsa_voyager_konubinix_source/keymap.c"

# One key per element: either FUNC(args) or a bare keycode.
KEY = r"\w+\((?:[^()]|\([^()]*\))*\)|\w+"

# Keycodes keymap-drawer leaves as their raw name.
RENAMES = {
    "BSPC": "DEL",
    "LEFT_GUI": "super",
    "RIGHT_GUI": "super",
    "CW_TOGG": "caps word",
    "QK_BOOT": "boot",
    "AUDIO_VOL_DOWN": "vol -",
    "AUDIO_VOL_UP": "vol +",
    "AUDIO_MUTE": "mute",
    "MEDIA_PREV_TRACK": "prev",
    "MEDIA_NEXT_TRACK": "next",
    "MEDIA_STOP": "stop",
    "MEDIA_PLAY_PAUSE": "play",
    "RGB_TOG": "rgb",
    "RGB_MODE_FORWARD": "rgb anim",
    "RGB_SLD": "rgb solid",
    "RGB_VAD": "dimmer",
    "RGB_VAI": "brighter",
    "TOGGLE_LAYER_COLOR": "layer colors",
    # rgblight_sethsv with those hues, per process_record_user.
    "HSV_0_255_255": "red",
    "HSV_74_255_255": "green",
    "HSV_169_255_255": "blue",
}

# What a glyph is coloured by is the modifier that reaches it.
COLOURS = {
    "shift": "#b03a2e",
    "altgr": "#1a5fb4",
    "both": "#7d3c98",
    "dead": "#1e7d32",
    # The modifiers that select no layout level.
    "plain": "#6b6f76",
}

STYLE = """
rect.homerow { fill: #d7e3f2; }
rect.thumbrest { fill: #eaf0f8; }
/* Restated last: the thumb that reaches the layer stays the held pink. */
rect.held { fill: #fdd; }
text.glyph.tl { font-size: 24px; }
text.tr, text.left, text.right { font-size: 18px; }
text.glyph.tap { font-size: 15px; }
text.hold { font-size: 12px; }
text.left, text.right { dominant-baseline: alphabetic; }
text.left, text.right { transform: translateY(14px); }
text.hold { transform: translateY(11px); }
text.glyph.tap { transform: translateY(9px); }
text.tr, text.shiftmod.hold { fill: %(shift)s; }
text.right, text.altgrmod.hold { fill: %(altgr)s; }
text.glyph.tap { fill: %(both)s; }
text.left, text.deadkeymod.tl { fill: %(dead)s; }
text.plainmod.hold, text.modkey.tap { fill: %(plain)s; }
""" % COLOURS

# footer_text lands raw inside a <text>, so it can carry its own colours.
LEGEND = (
    'base'
    ' · <tspan fill="%(shift)s">shift</tspan>'
    ' · <tspan fill="%(altgr)s">altgr</tspan>'
    ' · <tspan fill="%(both)s">altgr+shift</tspan>'
    ' · <tspan fill="%(dead)s">★ then key</tspan>'
) % COLOURS

# Nothing to do when run on its own rather than through the call.
if not SOURCE:
    raise SystemExit

# An ipfs link may carry a ?filename= suffix, which is not part of the path.
source = zipfile.ZipFile(SOURCE.split("?")[0]).read(KEYMAP).decode()

layers = [
    re.findall(KEY, re.sub("//.*", "", body))
    for body in re.findall(r"LAYOUT_voyager\((.*?)\n\s*\),", source, re.S)
]

OUT = os.path.expanduser("~/.cache/voyager-ergol")
os.makedirs(OUT, exist_ok=True)

with open(os.path.join(OUT, "voyager.json"), "w") as f:
    json.dump({"keyboard": "zsa/voyager", "layers": layers}, f)

with open(os.path.join(OUT, "ergol.json"), "w") as f:
    keycode_map = {}
    for keycode, base, shifted, altgr, dead, hard in glyphs:
        spec = {"t": base, "s": shifted, "right": altgr, "left": dead, "br": hard}
        keycode_map[str(keycode)] = {
            field: str(value).replace(r"\vert", "|")
            for field, value in spec.items()
            if value != ""
        }
        keycode_map.update(RENAMES)
        # Taps = and holds escape, per process_record_user.
    keycode_map["DUAL_FUNC_0"] = {**keycode_map["EQUAL"], "h": "esc"}
    json.dump(
        {
            "parse_config": {"qmk_keycode_map": keycode_map},
            "draw_config": {
                "svg_extra_style": STYLE,
                "footer_text": LEGEND,
                "shrink_wide_legends": 5,
                "key_w": 76,
                "key_h": 72,
                # Clearance between a corner legend and the key border.
                "small_pad": 15,
            },
        },
        f,
    )

import json
import sys

import yaml

# Readable label, and a class for the two that select a layout level, so the
# css can colour them like the glyphs they produce.
MODS = {
    "MOD_LSFT": ("shift", "shiftmod"),
    "MOD_RSFT": ("shift", "shiftmod"),
    "MOD_RALT": ("altgr", "altgrmod"),
    "MOD_LALT": ("alt", "plainmod"),
    "MOD_LCTL": ("ctrl", "plainmod"),
    "MOD_RCTL": ("ctrl", "plainmod"),
    "MOD_LGUI": ("super", "plainmod"),
    "MOD_RGUI": ("super", "plainmod"),
}

# A key that is only a modifier, rather than a modifier held on a letter.
MOD_NAMES = {"shift", "altgr", "alt", "ctrl", "super"}

# Third of the four rows, minus the outer pinky column and the inner index
# column, which are stretches: four fingers per hand actually rest here.
HOME_ROW = (25, 26, 27, 28, 31, 32, 33, 34)

# Of the two keys per thumb, the layer-tap is the one under the thumb at rest.
THUMBS = (48, 51)

path, config_path = sys.argv[1], sys.argv[2]
keymap = yaml.safe_load(open(path, encoding="utf-8"))
config = json.load(open(config_path, encoding="utf-8"))

# keymap-drawer builds mod-taps as tap/hold/shifted only, dropping left and
# right, which is exactly where the accents and the symbols live.
levels = {
    spec["t"]: spec
    for spec in config["parse_config"]["qmk_keycode_map"].values()
    if isinstance(spec, dict) and "t" in spec
}

for layer in keymap["layers"].values():
    for index, key in enumerate(layer):
        # A key with nothing but a tap is a bare string, and cannot carry a class.
        if isinstance(key, str):
            key = layer[index] = {"t": key}
        if not isinstance(key, dict):
            continue
        # keymap-drawer already typed the thumb that reaches the layer as
        # held, and the transparent keys as trans. Keep what it found.
        classes = key.get("type", "").split()
        if index in HOME_ROW:
            classes.append("homerow")
        elif index in THUMBS:
            classes.append("thumbrest")
        if key.get("h") in MODS:
            key["h"], mod_class = MODS[key["h"]]
            if mod_class:
                classes.append(mod_class)
        if key.get("t") == "★":
            classes.append("deadkeymod")
        if key.get("t") in MOD_NAMES:
            classes.append("modkey")
        for side in ("left", "right", "br"):
            if side not in key and side in levels.get(key.get("t"), {}):
                key[side] = levels[key["t"]][side]

        # A layout glyph goes to the top corners, leaving the sides for the
        # other levels and the bottom middle for the modifier name. A word
        # label needs the whole key and stays in the middle.
        if len(str(key.get("t", ""))) == 1:
            classes.append("glyph")
            key["tl"] = key.pop("t")
            if "s" in key:
                key["tr"] = key.pop("s")
                # The middle is free once the letter moved to the corner, and it is
                # the only spot altgr+shift does not land on the altgr glyph.
            if "br" in key:
                key["t"] = key.pop("br")
        if classes:
            key["type"] = " ".join(classes)

with open(path, "w", encoding="utf-8") as f:
    yaml.safe_dump(keymap, f, allow_unicode=True, sort_keys=False)

cd ~/.cache/voyager-ergol
nix shell nixpkgs#keymap-drawer --command keymap -c ergol.json parse -q voyager.json -o voyager.yaml
nix shell nixpkgs#python3Packages.pyyaml --command python3 - voyager.yaml ergol.json <<'EOF'
import json
import sys

import yaml

# Readable label, and a class for the two that select a layout level, so the
# css can colour them like the glyphs they produce.
MODS = {
    "MOD_LSFT": ("shift", "shiftmod"),
    "MOD_RSFT": ("shift", "shiftmod"),
    "MOD_RALT": ("altgr", "altgrmod"),
    "MOD_LALT": ("alt", "plainmod"),
    "MOD_LCTL": ("ctrl", "plainmod"),
    "MOD_RCTL": ("ctrl", "plainmod"),
    "MOD_LGUI": ("super", "plainmod"),
    "MOD_RGUI": ("super", "plainmod"),
}

# A key that is only a modifier, rather than a modifier held on a letter.
MOD_NAMES = {"shift", "altgr", "alt", "ctrl", "super"}

# Third of the four rows, minus the outer pinky column and the inner index
# column, which are stretches: four fingers per hand actually rest here.
HOME_ROW = (25, 26, 27, 28, 31, 32, 33, 34)

# Of the two keys per thumb, the layer-tap is the one under the thumb at rest.
THUMBS = (48, 51)

path, config_path = sys.argv[1], sys.argv[2]
keymap = yaml.safe_load(open(path, encoding="utf-8"))
config = json.load(open(config_path, encoding="utf-8"))

# keymap-drawer builds mod-taps as tap/hold/shifted only, dropping left and
# right, which is exactly where the accents and the symbols live.
levels = {
    spec["t"]: spec
    for spec in config["parse_config"]["qmk_keycode_map"].values()
    if isinstance(spec, dict) and "t" in spec
}

for layer in keymap["layers"].values():
    for index, key in enumerate(layer):
        # A key with nothing but a tap is a bare string, and cannot carry a class.
        if isinstance(key, str):
            key = layer[index] = {"t": key}
        if not isinstance(key, dict):
            continue
        # keymap-drawer already typed the thumb that reaches the layer as
        # held, and the transparent keys as trans. Keep what it found.
        classes = key.get("type", "").split()
        if index in HOME_ROW:
            classes.append("homerow")
        elif index in THUMBS:
            classes.append("thumbrest")
        if key.get("h") in MODS:
            key["h"], mod_class = MODS[key["h"]]
            if mod_class:
                classes.append(mod_class)
        if key.get("t") == "★":
            classes.append("deadkeymod")
        if key.get("t") in MOD_NAMES:
            classes.append("modkey")
        for side in ("left", "right", "br"):
            if side not in key and side in levels.get(key.get("t"), {}):
                key[side] = levels[key["t"]][side]

        # A layout glyph goes to the top corners, leaving the sides for the
        # other levels and the bottom middle for the modifier name. A word
        # label needs the whole key and stays in the middle.
        if len(str(key.get("t", ""))) == 1:
            classes.append("glyph")
            key["tl"] = key.pop("t")
            if "s" in key:
                key["tr"] = key.pop("s")
                # The middle is free once the letter moved to the corner, and it is
                # the only spot altgr+shift does not land on the altgr glyph.
            if "br" in key:
                key["t"] = key.pop("br")
        if classes:
            key["type"] = " ".join(classes)

with open(path, "w", encoding="utf-8") as f:
    yaml.safe_dump(keymap, f, allow_unicode=True, sort_keys=False)
EOF
nix shell nixpkgs#keymap-drawer --command keymap -c ergol.json draw voyager.yaml -o cheatsheet.svg
nix shell nixpkgs#librsvg --command rsvg-convert -z 1.5 -b white cheatsheet.svg -o cheatsheet.png
printf '%s' "$PWD/cheatsheet.png"
