Playing Card Holder

printable playing card holder

Printed on my labists x1 mini scaling on X and Z by 0.85 and rotating so that it uses the diagonal. I printed it with a 6mm brim and a 20% infill.

I could even use the extra space to put the stand and print the whole thing at once.

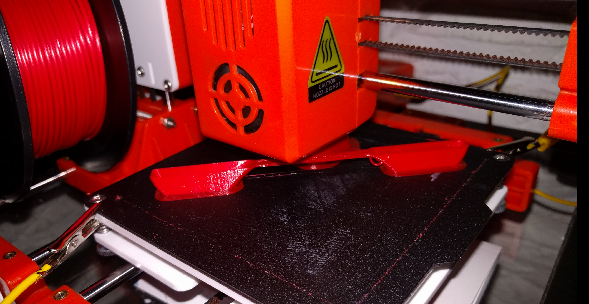

I was quite impressed to see how the printer was able to create a bridge between the two feet, without support.

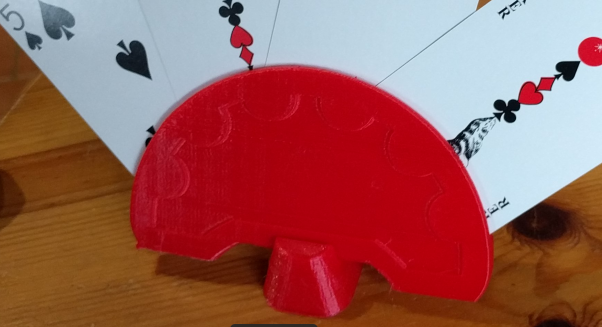

The result was just great.

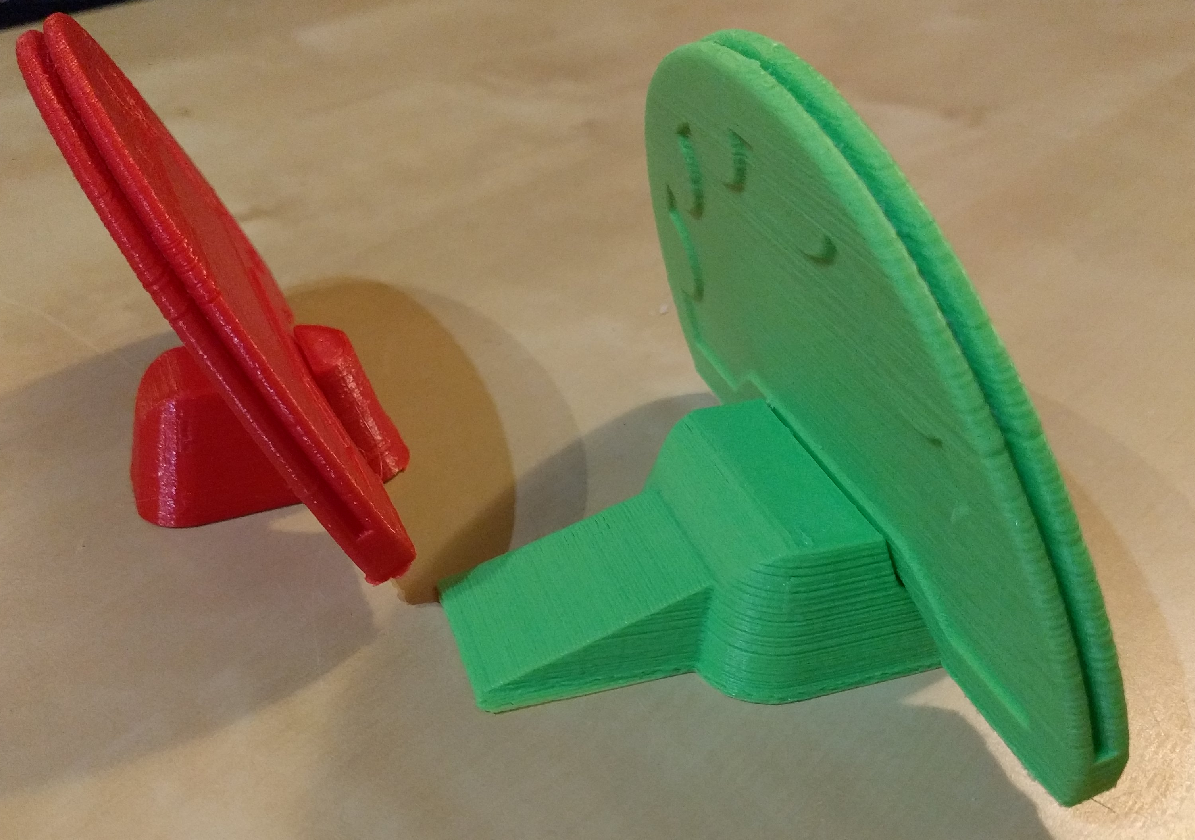

The stand is too small and with my kids playing, the card holder often falls. So I adjusted the stand to make it larger and added a tail.

Using a 4mm brim, I could scale to X*0.88, Y, Z*0.88.

I had to shorten it a bit so that it gets into my printing hull.

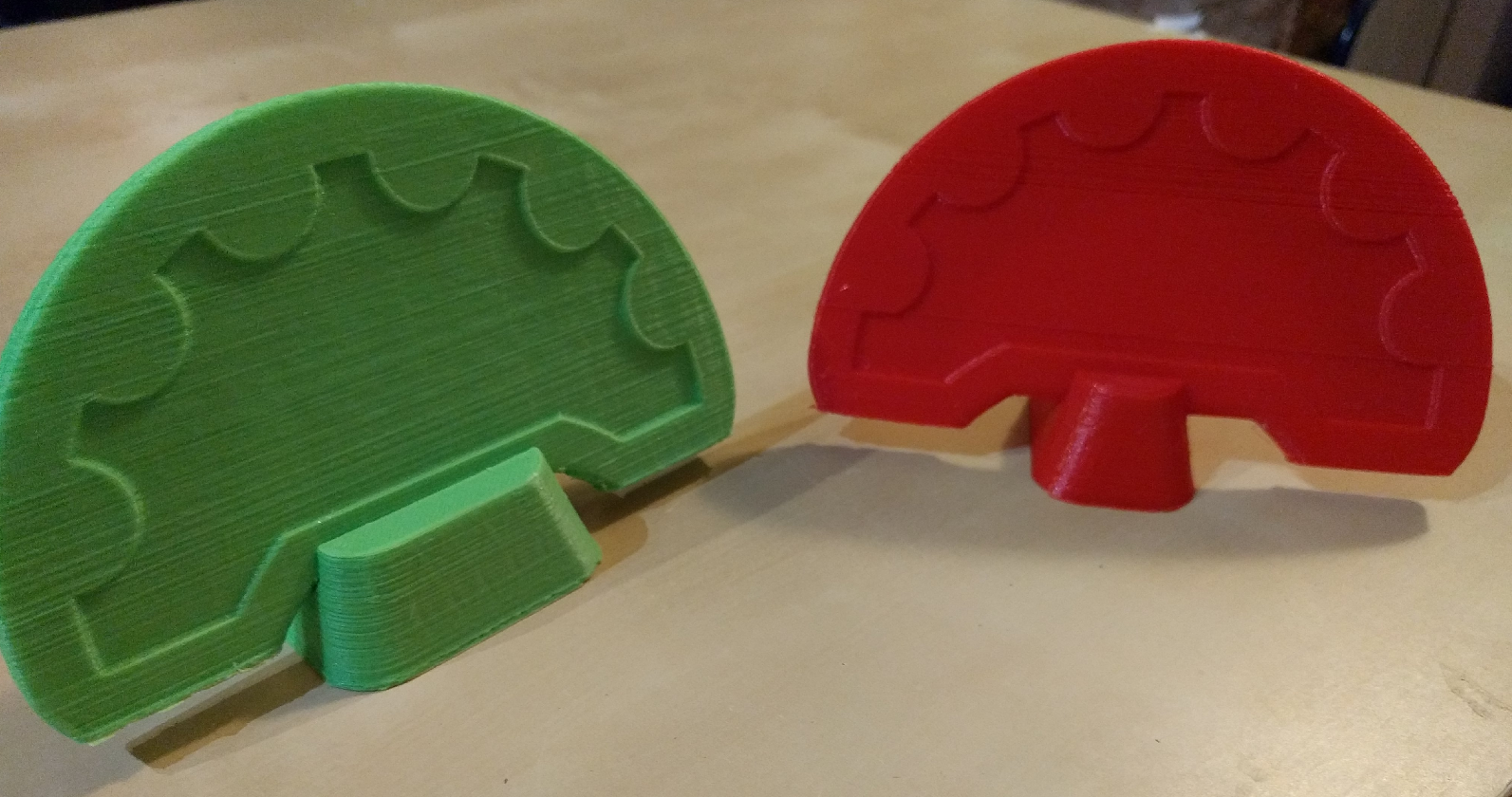

The first one easily breaks and cards fall.

Cards easily fall of the second one.

Let’s try a new one.

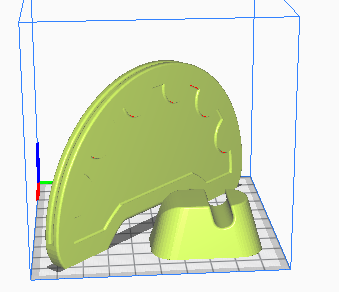

Adding a foot so that it can stand on its own.

It’s not great yet, it tends to break easily, so I will want to improve it in the future.

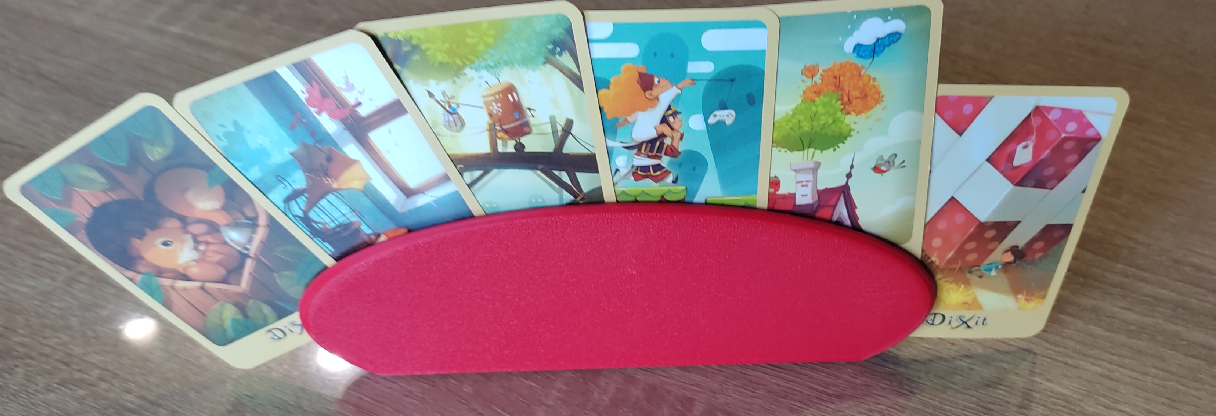

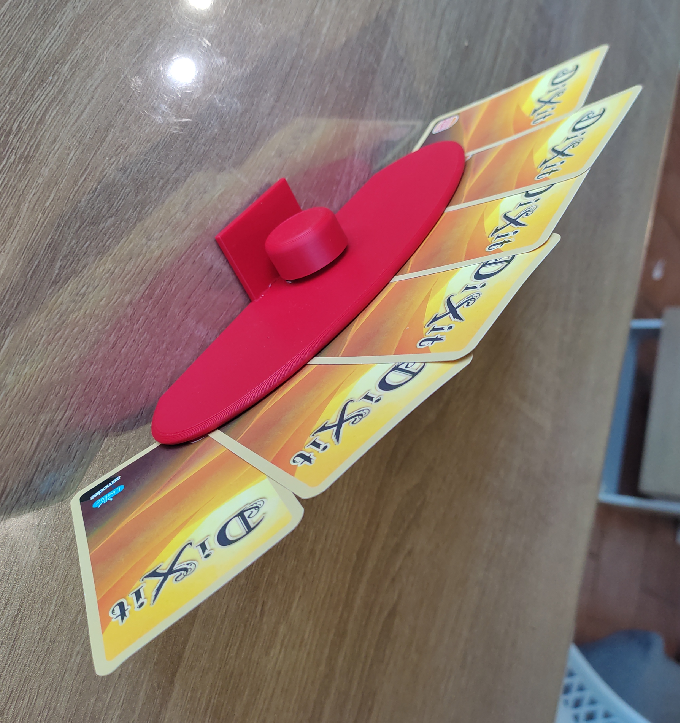

And I wanted a bigger holder, so I first separated the screw and the base and the top and the hole
