Magnet Hooks

Fleeting

tag: learning 3D printing magnet hooks

first version

The support was exported with -Z up and the hook with Y up

hook.blend

https://ipfs.konubinix.eu/p/bafkreic3uvkg3tvat24bkmcp7saybgvdtlfatvrpgzvcz4oknncrorpufe?hook.stl

https://ipfs.konubinix.eu/p/bafybeidutogm54tsxfo2wlot5fzunapnbflldzwjtnons3yedjtfgcgoxm?support.stl

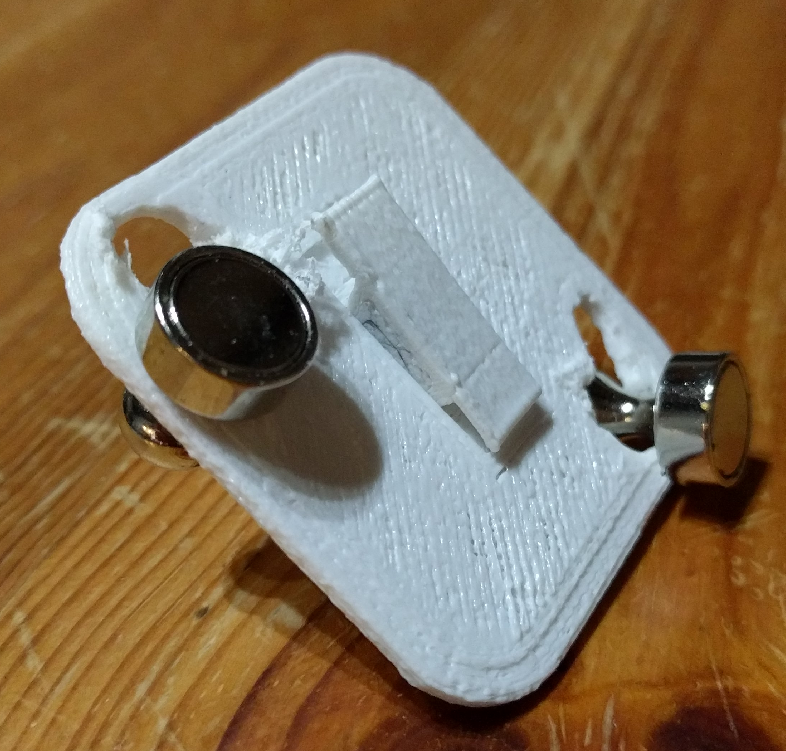

• the holes where two small, I needed to file them,
• the magnet slides, the ledge was not useful,
• the hook is slightly to small,
• 2 holes is a good number, only one magnet was not strong enough to hold a bike helmet,

second attempt

hook.blend

https://ipfs.konubinix.eu/p/bafkreicmzdsxhu555hrylsg4nzl7h3wkziixcnonexbhw5t5tly7lv23v4?hook.stl

https://ipfs.konubinix.eu/p/bafybeicdyoqugjou22k5hvinmbxxjpvb6pqzptiqkldzsk4dlsk6an33ty?support.stl

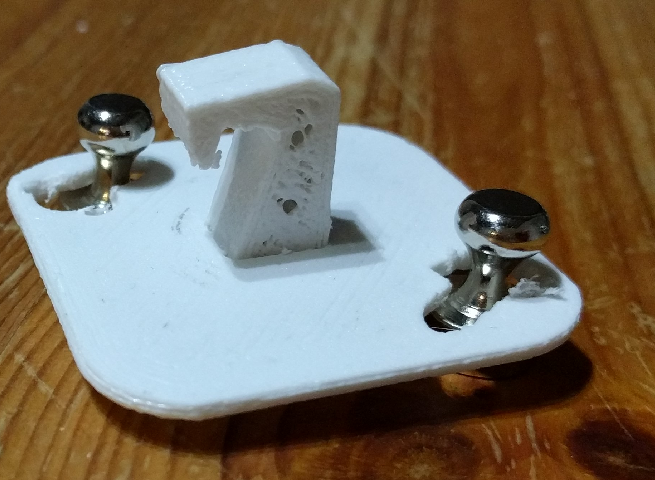

The holes are too big. But the hook is great.

third attempt

It’s great!

Unfortunately, I forgot to save it.

fourth attempt

With only modifications on the support.

hook.blend

https://ipfs.konubinix.eu/p/bafybeieattaey2ykskf3rjr2rczuqvyloectystljmbhxpkhza3qppjov4?support.stl

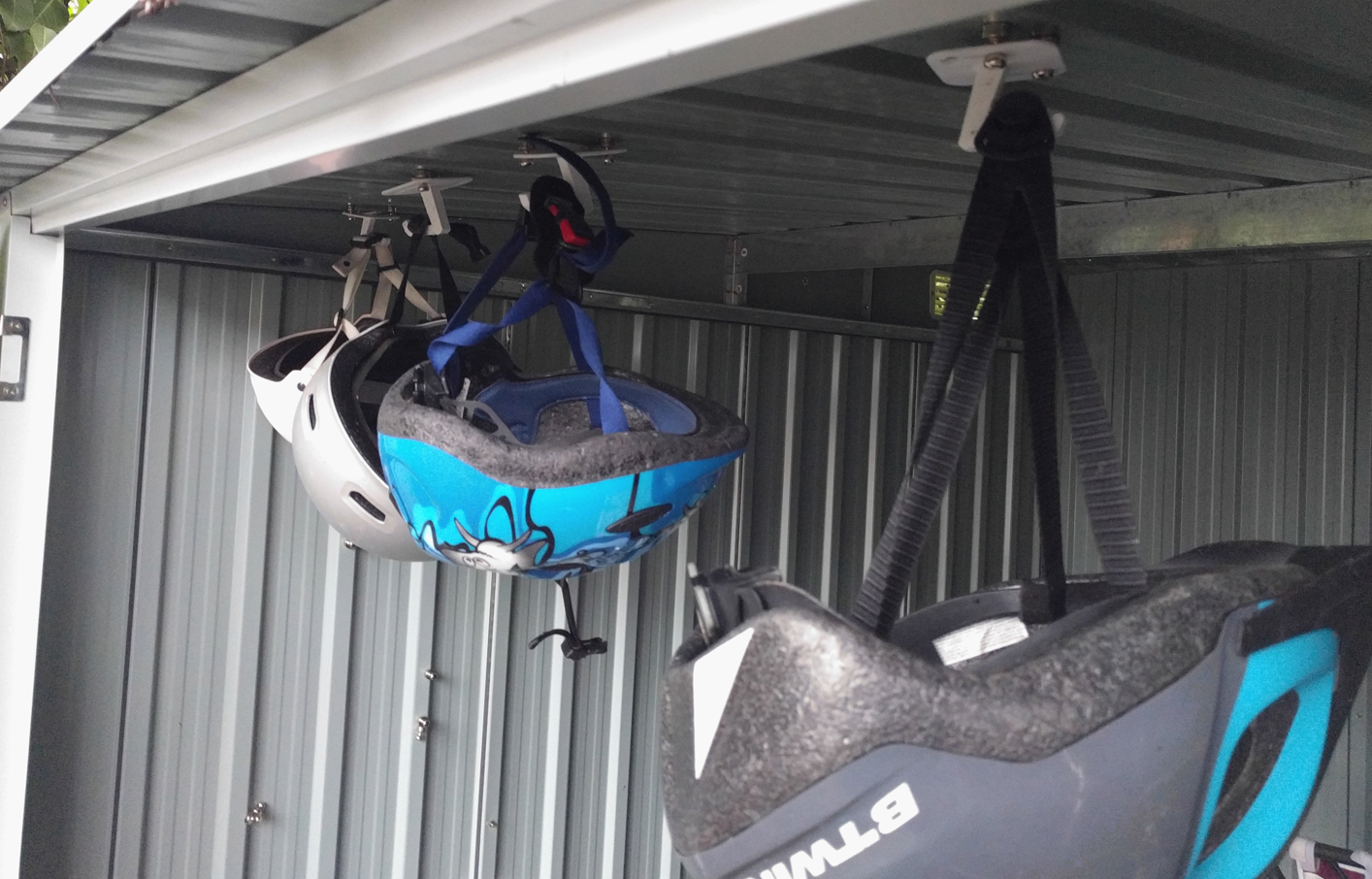

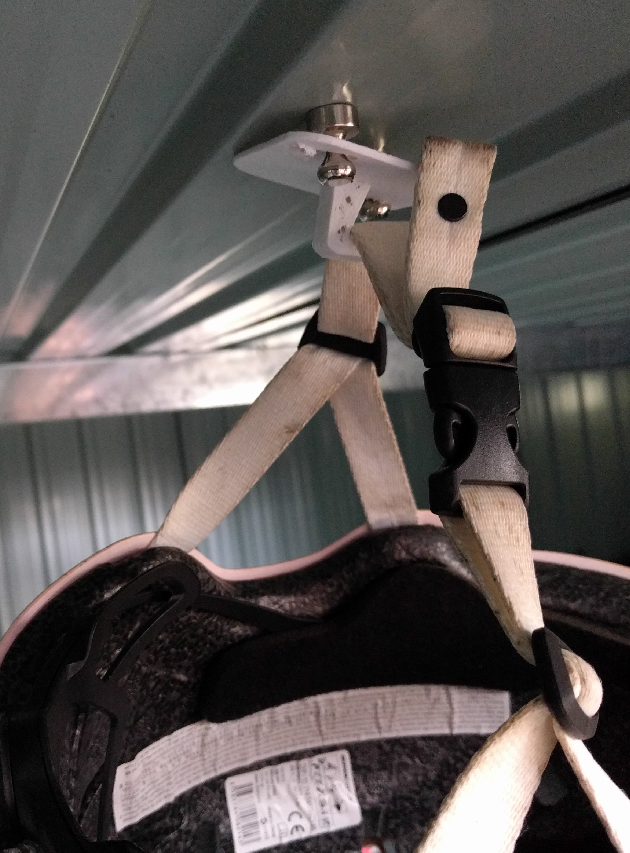

It works great !
