Intel Sgx

Intel’s hardware implementation of the enclave concept.

private regions of memory, called enclaves, whose contents are protected and unable to be either read or saved by any process outside the enclave itself

Should be fips 140-2 Level 3, (not 4) since it is indicated not to handle side-channel attacks.

Intel SGX Explained

  • Référence externe : @cryptoeprint:2016:086

Intel SGX Explained

Annotations

the PRM’s size must be an integer power of two, and its start address must be aligned to the same power of two. Due to these restric- tions, checking if an address belongs to the PRM can be done very cheaply in hardware, using the circuit outlined

Our security analysis of SGX relies on implementation details surrounding the PRM, and will have to be re-evaluated for SGX future implementations

SGX sets aside a memory region, called the Processor Reserved Memory (PRM). The CPU protects the PRM from all non-enclave memory accesses, including kernel, hypervisor and SMM accesses, and DMA accesses from peripherals

After all the enclave’s pages are loaded into EPC, the system software asks the CPU to mark the enclave as initialized (§ 5.3), at which point application software can run the code inside the enclave. After an enclave is initialized, the loading method described above is disabled.

While an enclave is loaded, its contents is cryptographically hashed by the CPU. When the enclave is initialized, the hash is finalized, and becomes the measurement hash

the most troubling finding in our security analysis is that Intel added a launch control feature to SGX that forces each computer’s owner to gain approval from a third party (which is currently Intel) for any enclave that the owner wishes to use on the computer. […] the only publicly documented intended use for this launch control feature is a licensing mechanism that requires software developers to enter a (yet unspecified) business agreement with Intel to be able to author software that takes advantage of SGX’s protections. All the official documentation carefully sidesteps this issue, and has a minimal amount of hints that lead to the Intel’s patents on SGX. Only these patents disclose the existence of licensing plans.

The licensing issue might not bear much relevance right now, because our security analysis reveals that the limitations in SGX’s guarantees mean that a security-conscious software developer cannot in good conscience rely on SGX for secure remote computation. At the same time, should SGX ever develop better security properties, the licensing scheme described above becomes a major problem, given Intel’s near-monopoly market share of desktop and server CPUs. Specifically, the licensing limitations effectively give Intel the power to choose winners and losers in industries that rely on cloud computing.

To avoid leaking private data, a CPU that is executing enclave code does not directly service an interrupt, fault (e.g., a page fault) or VM exit. Instead, the CPU first performs an Asynchronous Enclave Exit to switch from enclave code to ring 3 code, and then services the interrupt, fault, or VM exit. The CPU performs an AEX by saving the CPU state into a predefined area inside the enclave and transfers control to a pre-specified instruction outside the enclave, replacing CPU registers with synthetic values.

This means that the contexts switch are quite costly. No wonder why the documentation recommends to avoid using them as much as possible.

The allocation of EPC pages to enclaves is delegated to the OS kernel (or hypervisor). The OS communicates its allocation decisions to the SGX implementation via special ring 0 CPU instructions. The OS can also evict EPC pages into untrusted DRAM and later load them back, using dedicated CPU instructions. SGX uses cryptographic protections to assure the confidentiality, integrity and freshness of the evicted EPC pages while they are stored in untrusted memory.

flexible launch control

What is Flexible Launch Control?

The Intel SGX DCAP primitives require a new feature called Flexible Launch Control, which allows the platform owner, versus Intel, to control which enclaves are launched. This includes which enclaves are granted access to the Platform Provisioning Identifier (PPID) used with the Certificate Retrieval Service.  The enclave requesting access to the PPID can be signed by the attestation service provider. One of the purposes of the Launch Enclave is to prevent abuse of the PPID in privacy sensitive environments.

Building an attestation service requires integration with the operating system, and we are working with the Linux Kernel community to get this up-streamed as soon as possible.  Note that you are not required to build your own Quoting Enclave.

— https://software.intel.com/content/www/us/en/develop/blogs/an-update-on-3rd-party-attestation.html

Ma compréhension

SGX est un ensemble de fonctionnalités de la suite des processeurs intel post 2018 permettant un chiffrement/déchiffrement à la volée de la DRAM avec une clé cryptographique embarquée dans le processeur.

Elle permet la réduction de la surface d’attaque à l’interface entre le processeur et la partie logicielle et entre le code de la partie chiffrée et le reste de l’application. [1]

Il y a très peu de limitations à ce qui peut tourner de façon chiffrée, mais, dû à la corrélation entre nombre de bugs et taille de code et au sur coût de chiffrer à la volée, il est conseillé de réduire la partie chiffrée au minimum nécessaire à garantir la confidentialité du code. [2]

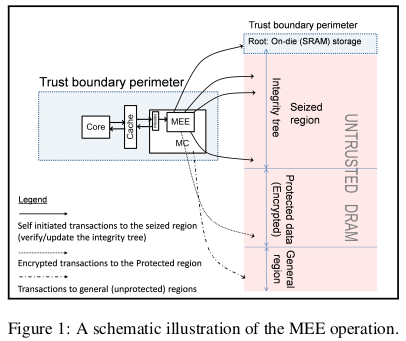

Il est important de comprendre que, dans le modèle de confiance de SGX, le circuit imprimé contenant le processeur est la seule entité de confiance, incluant la SRAM associée. La DRAM est considérée non de confiance. [3]

Bien que SGX tente de rendre l’écriture de programmes simples, il est nécessaire de comprendre les vocabulaire de SGX pour développer des application compatibles :

Pour protéger la mémoire, voir how does sgx protects my data?

Notes pointant ici

Bibliographie

References

[1]
Sgx 101 - overview, https://sgx101.gitbook.io/sgx101/sgx-bootstrap/overview.
[2]
Intel® software guard extensions (intel® sgx) developer guide, https://download.01.org/intel-sgx/sgx-linux/2.12/docs/Intel_SGX_Developer_Guide.pdf.
[3]
GUERON, S., A Memory Encryption Engine Suitable for General Purpose Processors, https://eprint.iacr.org/2016/204.pdf.
