Flybotic Xtrem Plane Drone
FleetingAvoid! The product uses an in-house battery. I cannot find any replacement and they don’t answer me when asking for directions.
It works well, but only one battery makes the enjoyment very short.

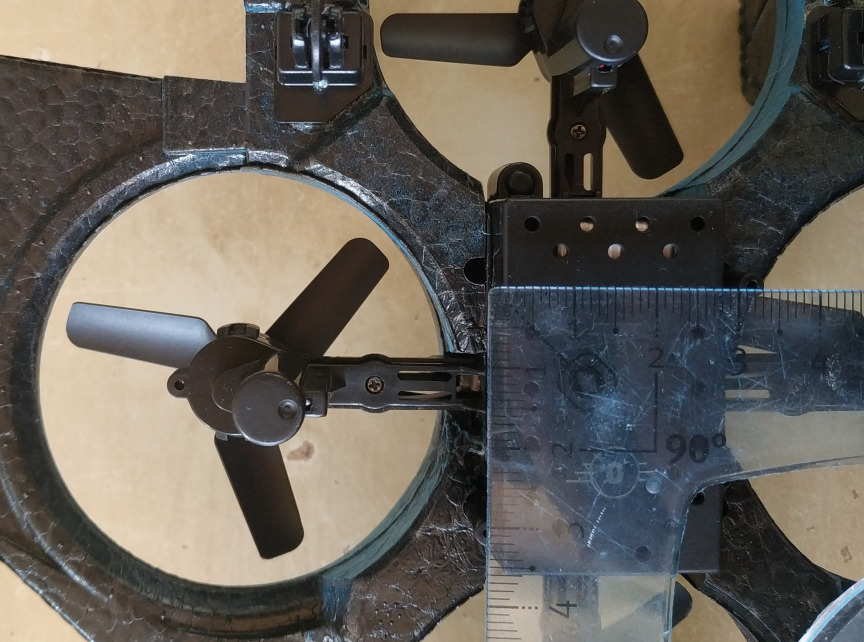

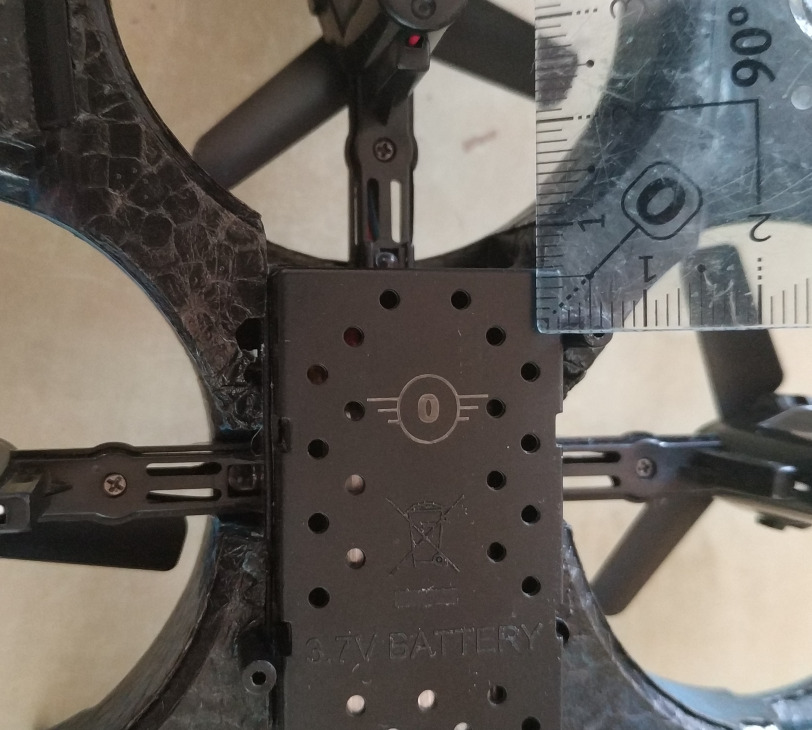

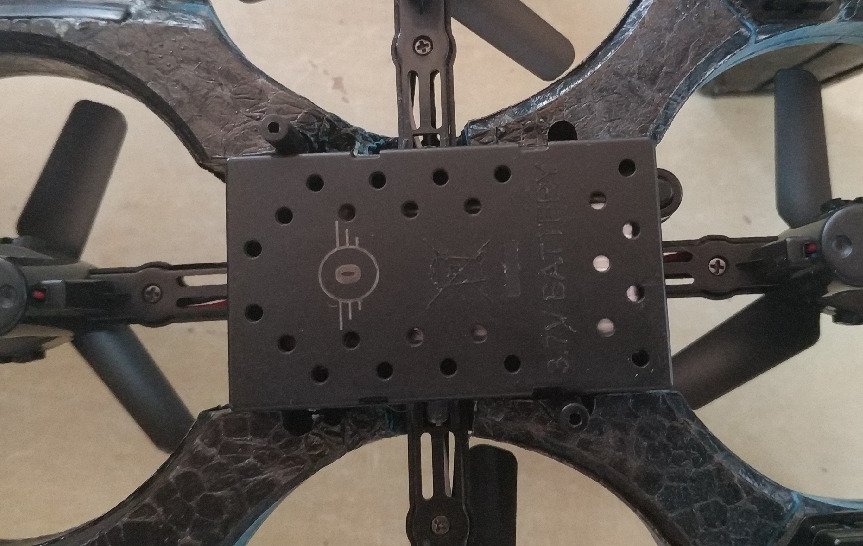

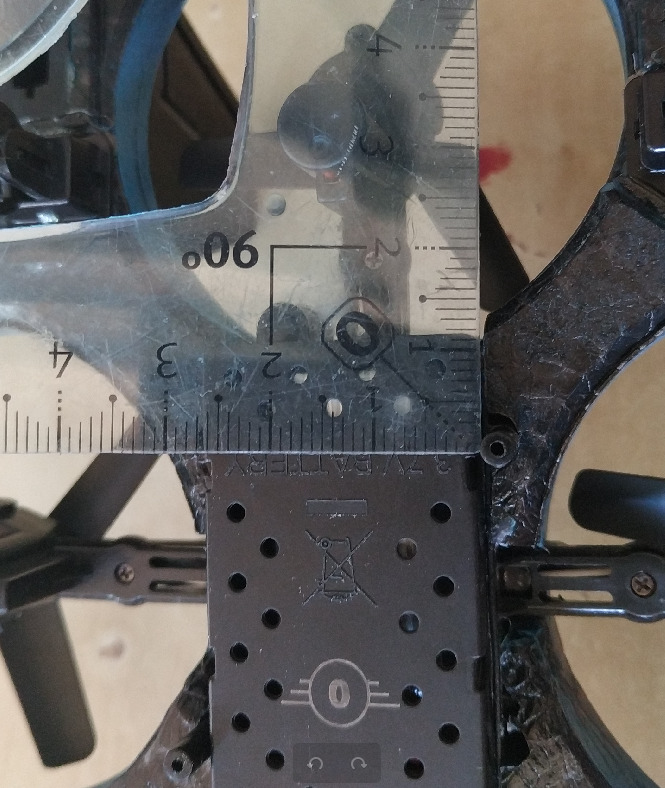

It looks like the parrot ones, except its dimensions (13 28 48) are nowhere to be found. It does not show any information on it, like a serial number that would help the search.
I found this but it did not fit.

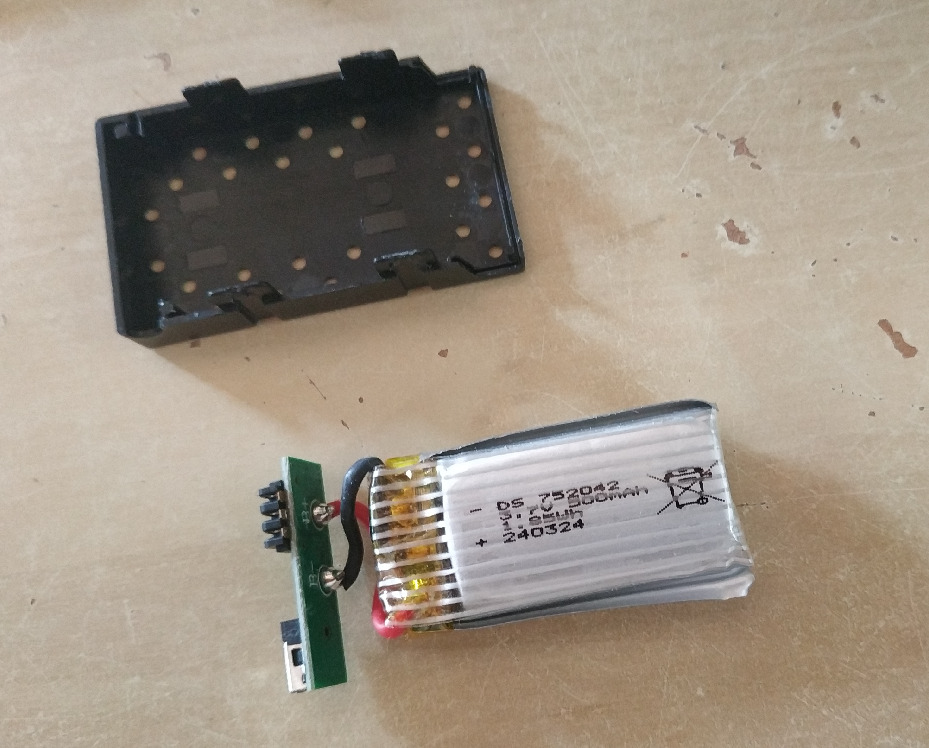

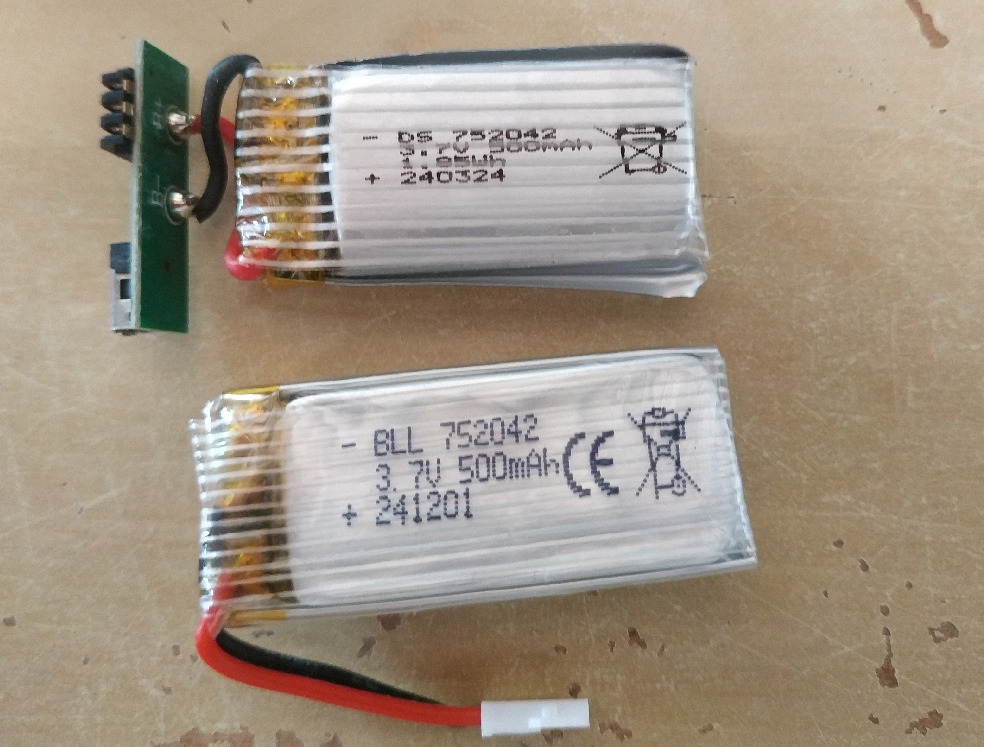

Opening it, I can see this component

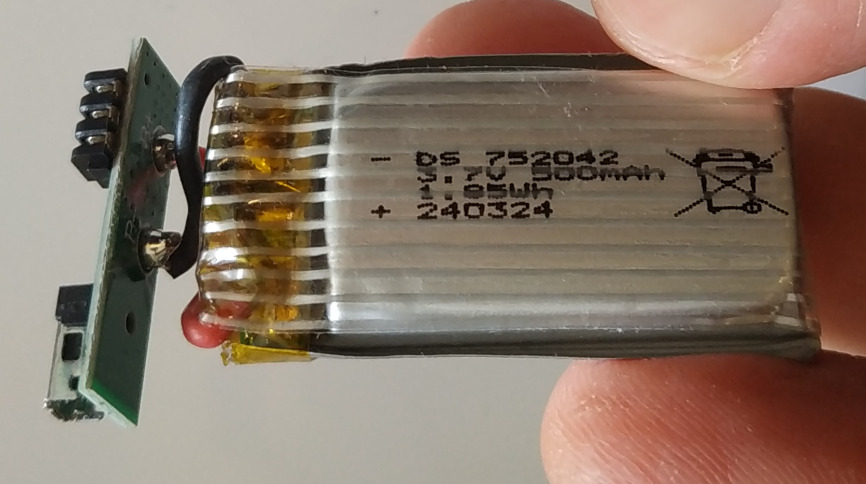

along with this battery
Now we are getting somewhere. I can buy extra batteries, solder a JST connector on it and we should be good to go.
As a matter of fact, I can even use batteries from my hubsan x4 and 3D print a bigger enclosure.
Hubsan batteries dimensions are 39 x 18 x 8, while the xtrem plane is 752042 -> 42 x 20 x 7.5, therefore a little bit bigger. It might fit with an enclosure a little bit bigger. Note that soldering the JST connector will use a little bit more space.

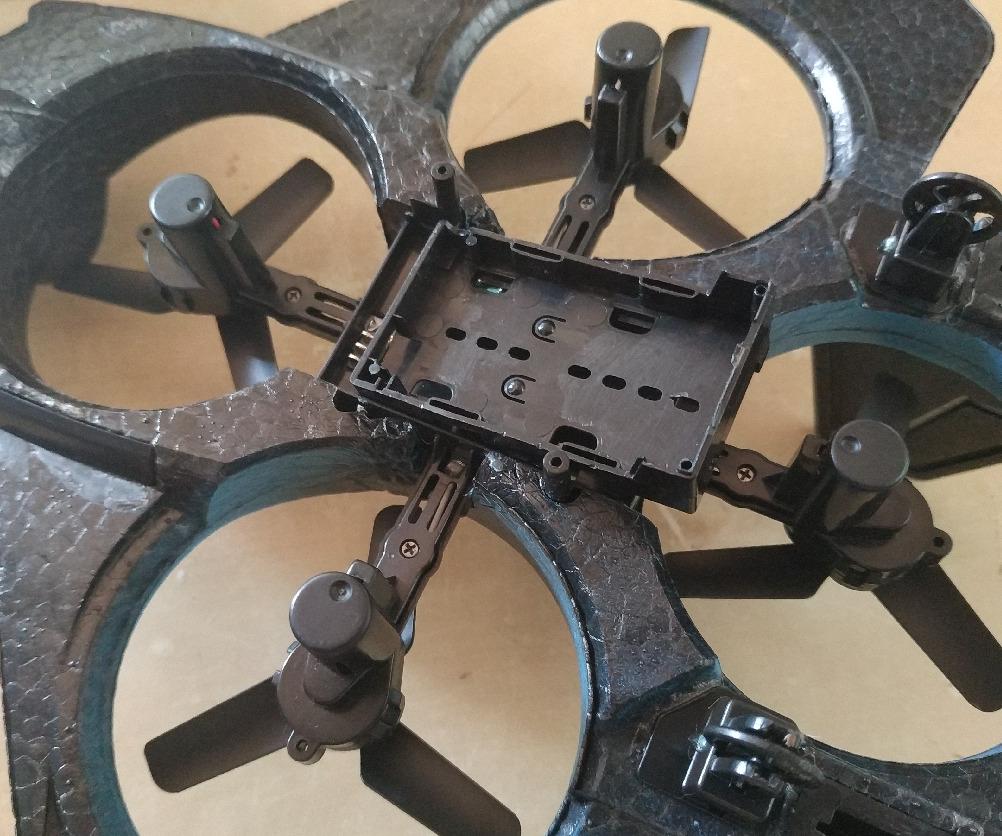

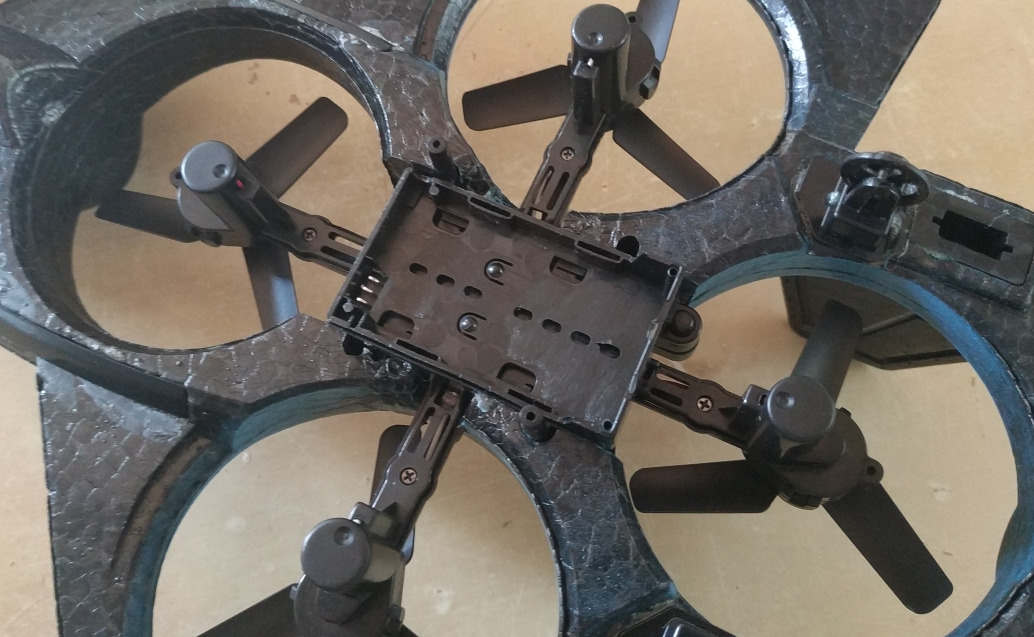

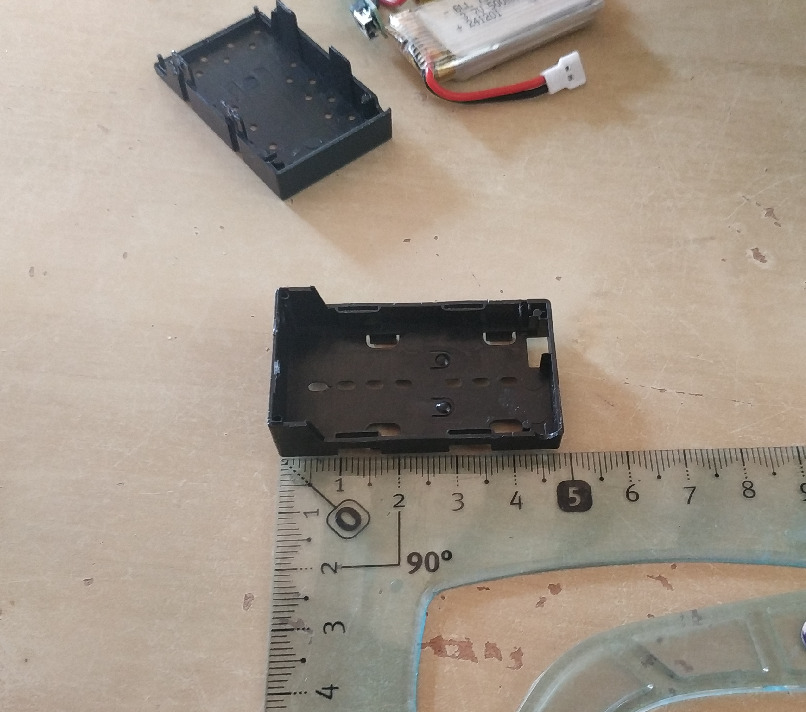

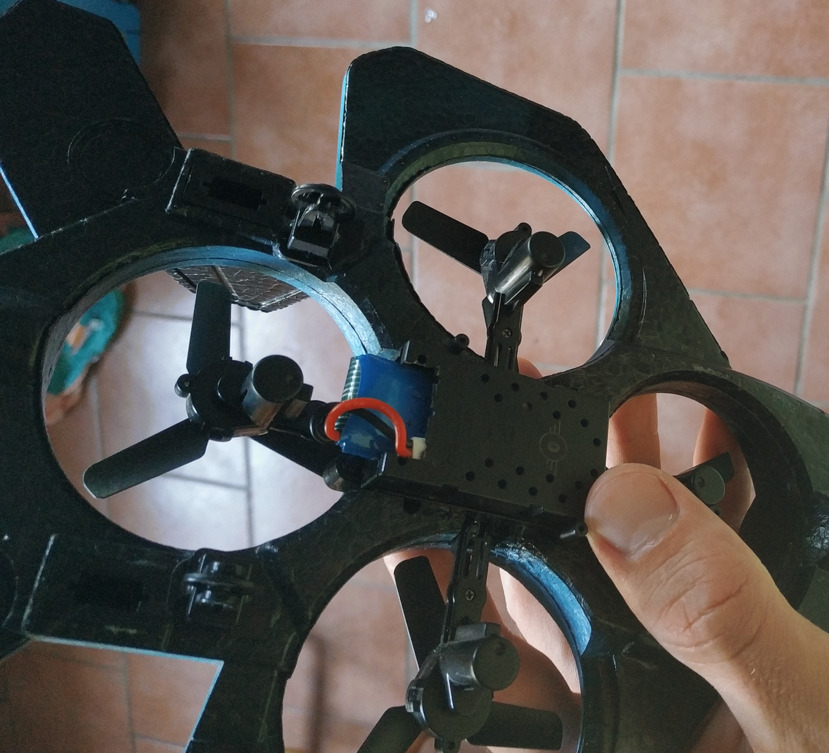

Simply cutting the back of the casing and soldering a walkera molex plug, and it worked nicely with the hubsan x4 battery.
Now, we have to find a way to avoid it from moving back and forth.
