8bitdo Lite 2 Controller Grip
Fleeting- External reference: https://www.thingiverse.com/thing:5547980
- tl;dr
- a.blend

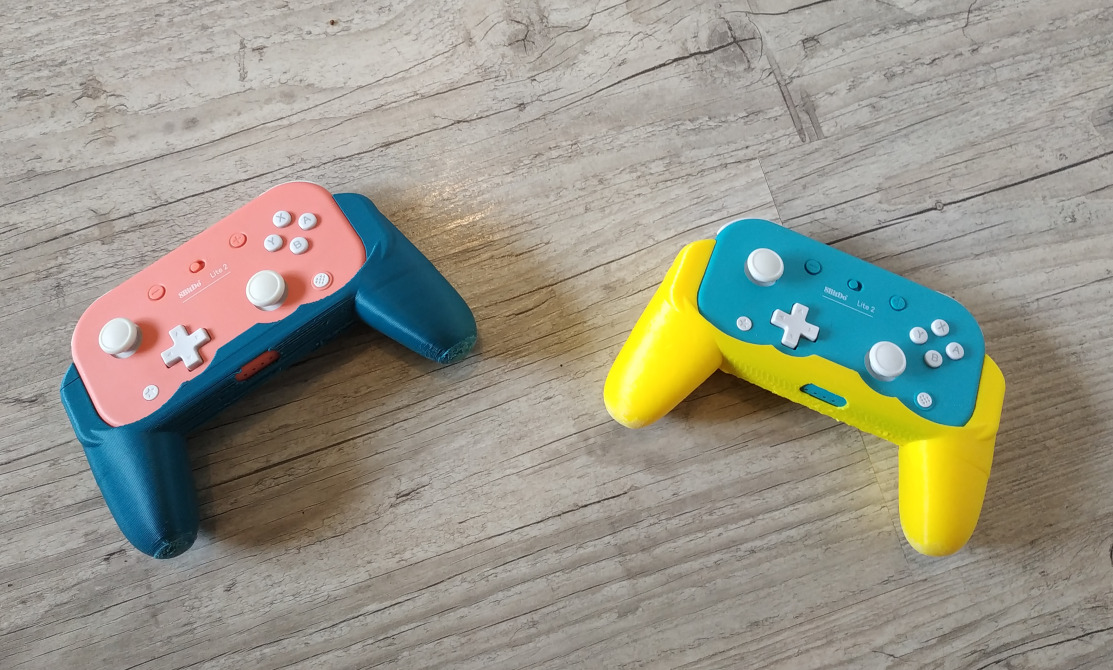

It worked ok, but I needed to add a bit of adhesive to make it fit. Otherwise, it tends to get out of the grip.
I guess that adding something on the top to make it fit better might be good.

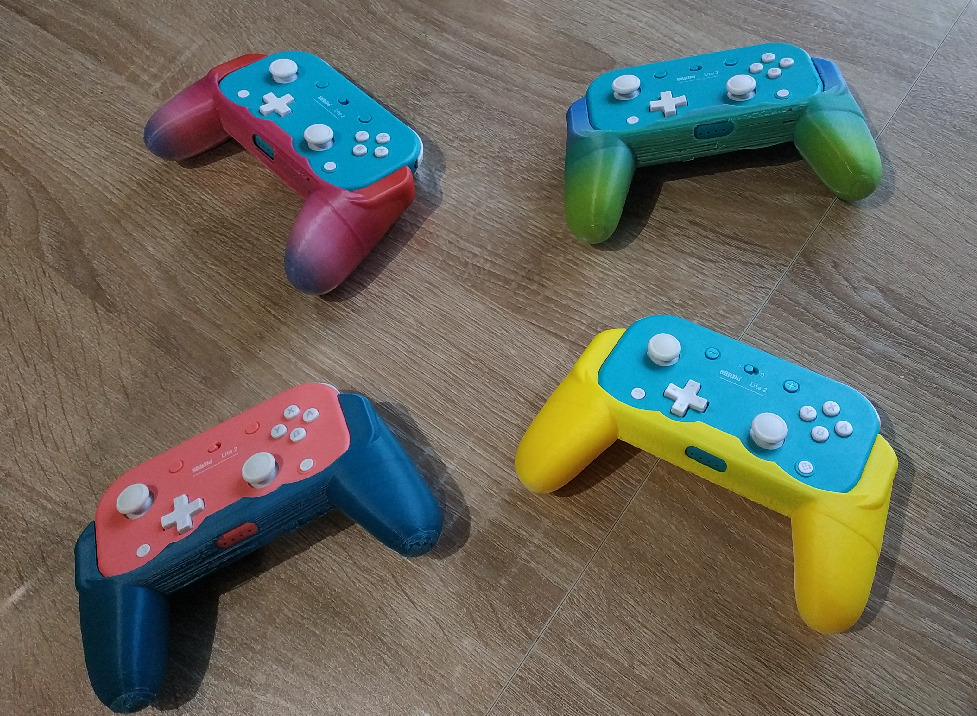

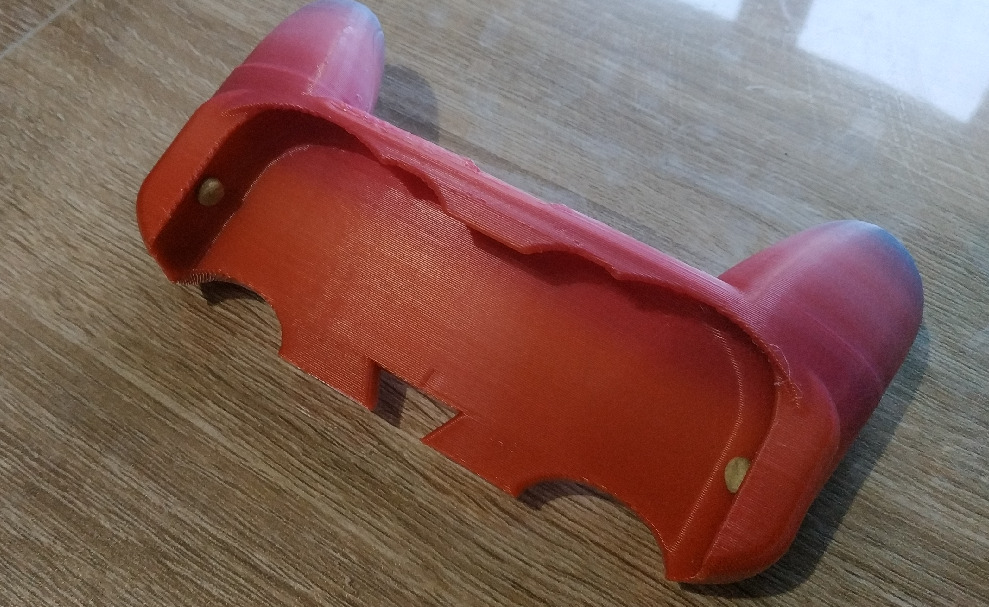

In order not to print grips for every attempt, I added a dovetail mark on it.
My first attempt used 0.6 mm nozzle and no support on bambulab a1 mini. It was not great.
tthen, I tried 0.8, painted support only on the hanging part, no brim
It did not adhere at all.

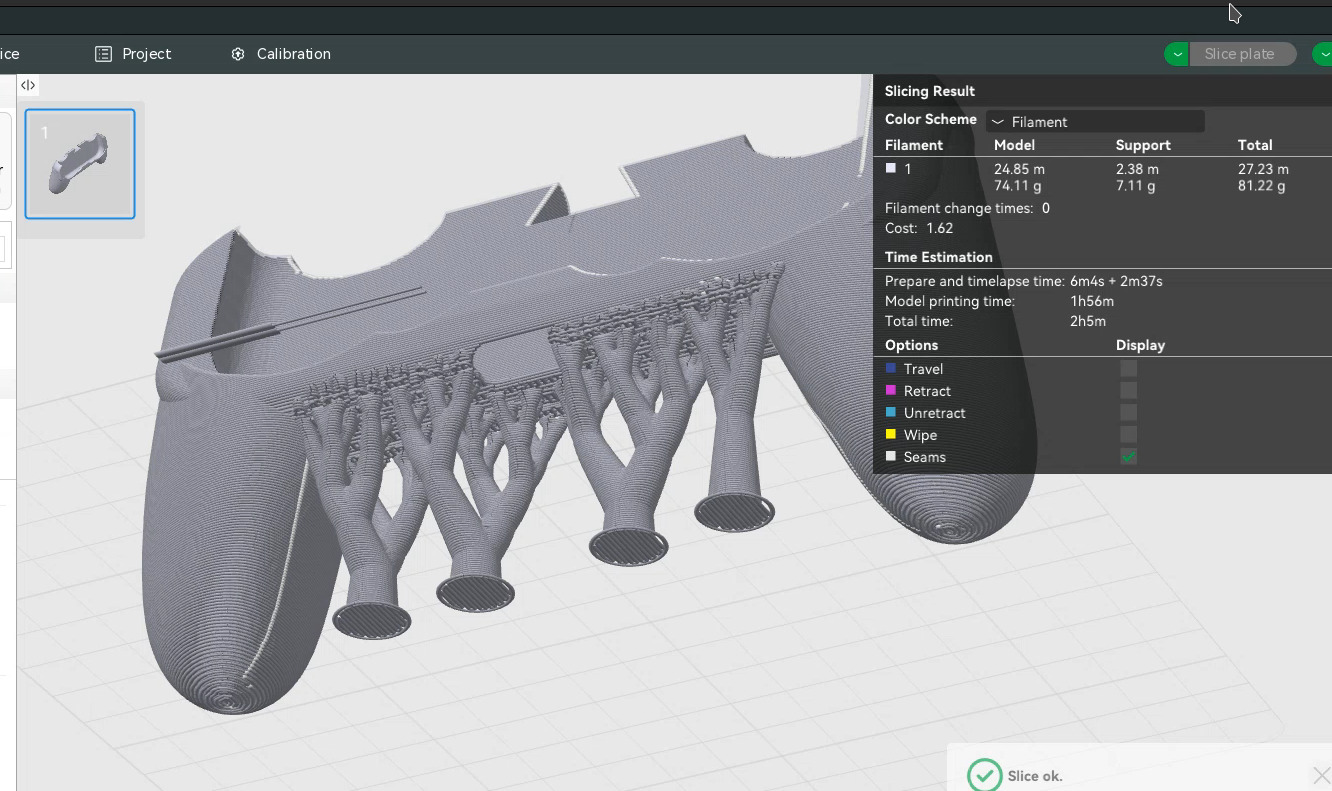

Then, 0.8, auto tree support, it work-ish

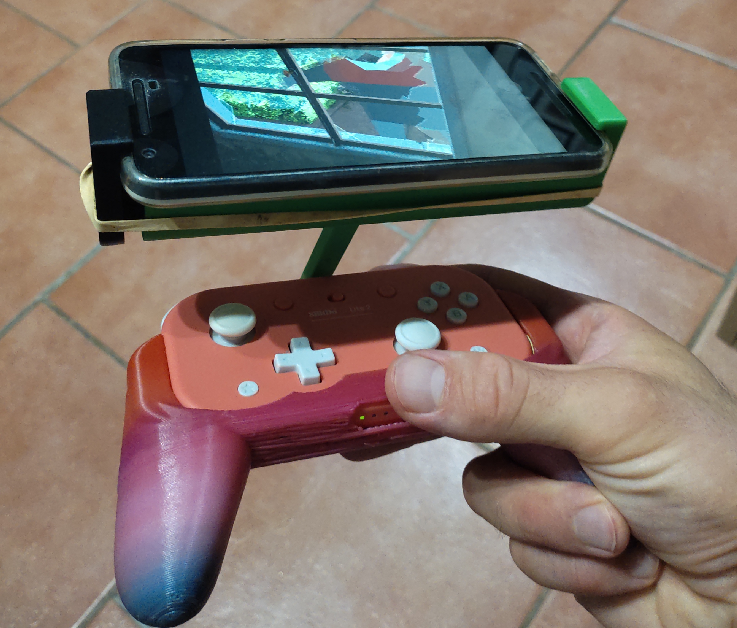

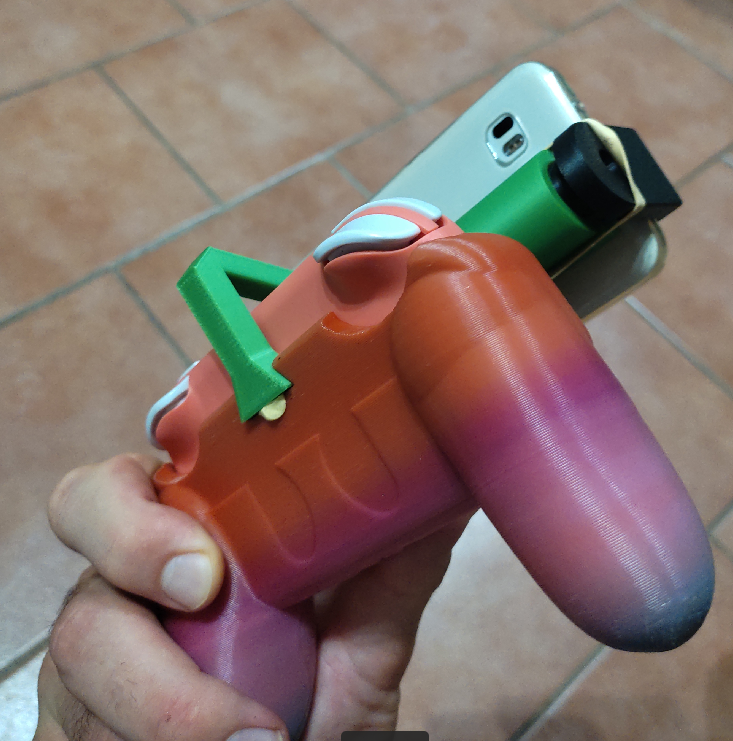

adding a phone mount

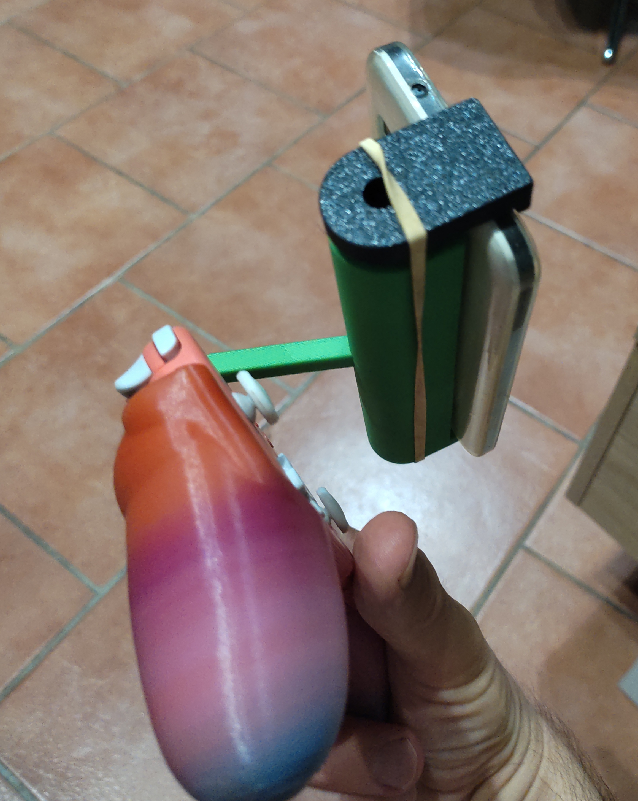

recycling a tripod mount
using https://www.printables.com/model/152911-camera-tripod-screw-14-20-unc
I just put it on top of the part that cut the dovetail in the grip.
It was too hard to find the good orientation, and it broke easily.
using https://www.thingiverse.com/thing:918608
The original model is
I added an attach using the dove part and cut it into the base.

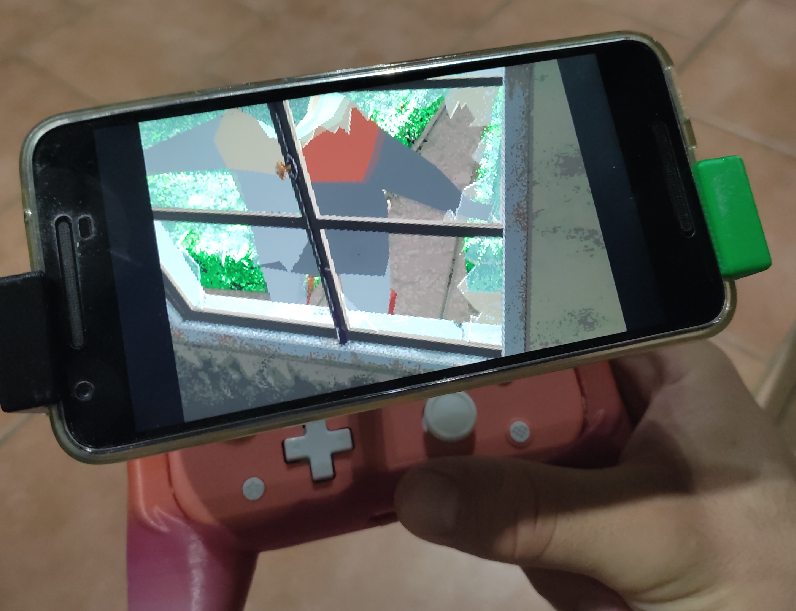

I increased the size of the mount to fit my 150x10 phone.

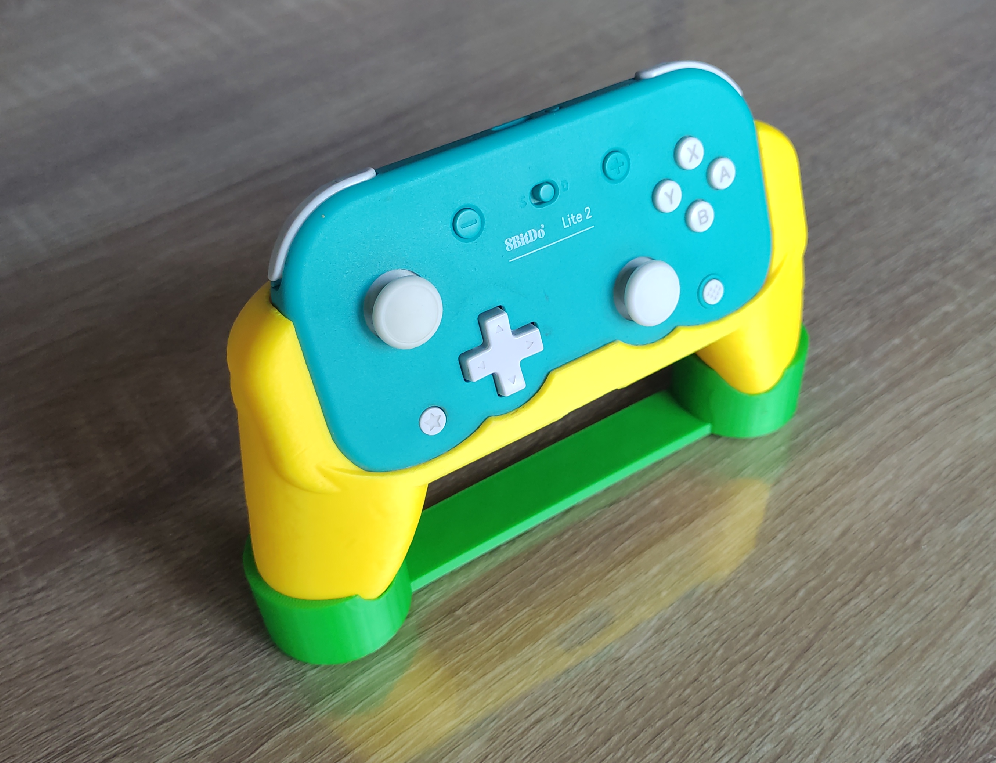

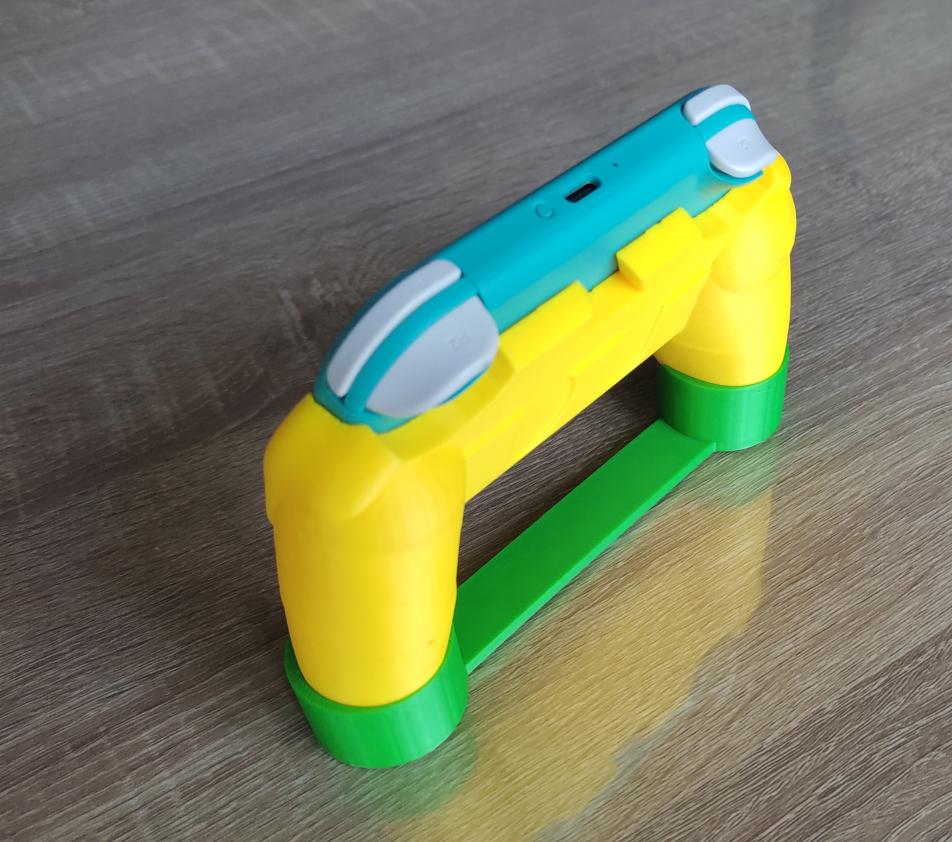

adding stand ease putting the controller away vertically
